Roughly 70% of homes in the U.S. built before 1980 still use copper for some portion of their water supply. This highlights the enduring importance of copper pipe fittings in plumbing systems. This guide explains the key copper fittings commonly found in plumbing. They connect, redirect, and regulate water, gas, and refrigerant flows. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Explore more about 5 8 Copper Line
Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. When installed correctly, copper fittings can last decades. As a result, they are often a cost-effective solution for many jobs.
In this article, we’ll discuss how to identify fittings by function and size. We will also compare soldered connections with mechanical ones. You’ll learn how to find compatible parts through trusted suppliers like Installation Parts Supply. The goal is to give you straightforward advice for selecting the right plumbing fittings for your next project.

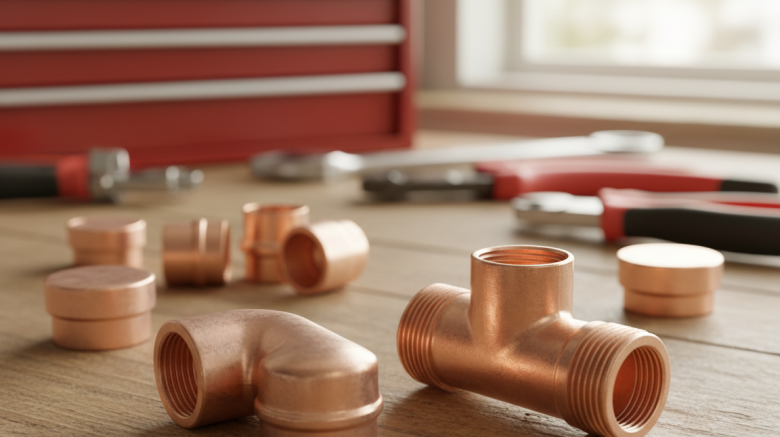

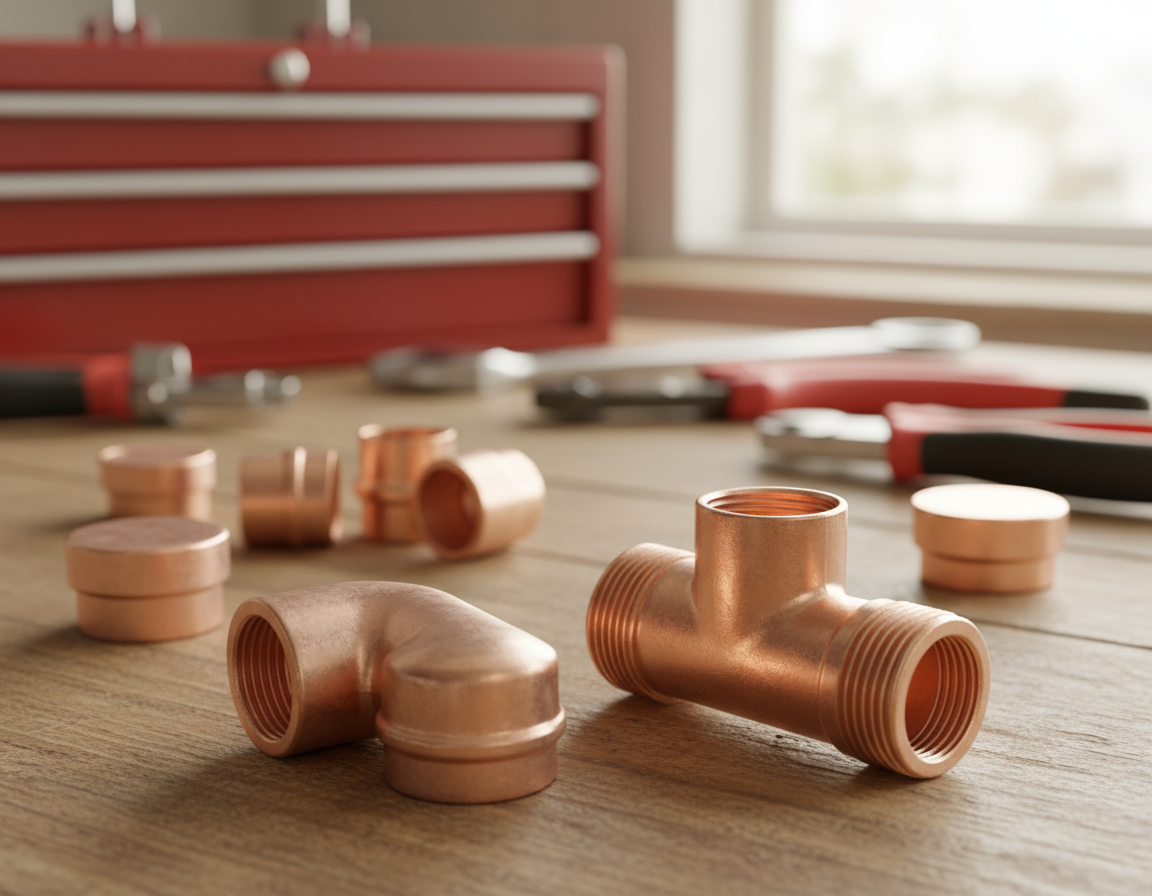

Copper Pipe Fittings: Overview And Why Choose Copper
Copper pipe fittings are a preferred choice for both residential and commercial plumbing. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. This overview highlights the main reasons plumbers and contractors opt for copper in new constructions and repairs.
Benefits Of Copper
Copper is known for its durability and malleability, allowing fittings like elbows and tees to be shaped easily without cracking. Because it can withstand high temperatures, it works very well in hot-water supply systems and boiler loops. Copper also has bacteriostatic properties, ensuring safer potable water compared to some plastics. It can be joined using solder, press systems, compression, or push-fit methods, providing flexibility in projects.
Longevity and corrosion resistance
Copper tubing often lasts from 70 to 80 years when it is installed correctly. As copper oxidizes, it forms a protective patina that helps limit deeper corrosion and improve service life. Quality material, proper fluxing, and clean joints are essential to prevent pinhole leaks and premature failure. Its service life can be extended even more through regular inspection and the use of properly matched fittings in supply lines and HVAC loops.
Applications Where Copper Outperforms Other Materials
Copper outperforms many alternative materials in hot-water systems, refrigeration lines, and high-pressure uses. In HVAC and refrigeration work, pipe 5 8 and copper tube 5/8 sizes are commonly used in refrigerant circuits because they perform reliably under heat and pressure. Compared to PVC or PEX, copper fittings can handle higher temperatures and maintain rigidity under stress. Against multilayer or composite pipes, copper is less susceptible to impact damage and has a proven track record in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Durability | Strong tensile performance and wear resistance | Hot-water supply, boiler loops |
| Temperature tolerance | Withstands high temperatures without softening | Water heaters, HVAC lines |
| Corrosion performance | Forms protective patina that slows degradation | Long-run supply lines in homes |
| Joining options | Soldering, brazing, compression, push-fit, and press methods | New installations and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits, tight commercial runs |
Common Types Of Copper Pipe Fittings Used For Supply Lines
Selecting the right copper fittings is essential for a successful project. Here we cover important fittings used in water supply lines, including those for directional changes and service access. Be sure to consider connection style, pipe size, and material compatibility as you plan.
Elbows, Tees, And Crosses: Direction Changes And Branching
Elbows are used at 90°, 45°, and 22.5° angles to direct flow around corners. They are essential when routing around obstacles or following wall lines. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Cross fittings connect four directions and are ideal where system lines meet.
These fittings come in various styles, including sweat/soldered, press, and compression. Select the connection type that fits your copper pipe connectors and the installer’s skill level.
Couplings, Adapters, And Unions For Joining And Maintenance
Copper couplings connect two pipe lengths of the same diameter. Reducing couplings are used when different sizes must be joined. Adapters convert between materials and thread types, such as copper-to-brass or copper-to-PEX.
Unions make it easy to separate sections for repairs or equipment servicing. They work especially well where a valve or fixture may need occasional removal. Ensure unions and adapters match the pipe OD or nominal size to prevent leaks.
Caps, Plugs, And Clean-Outs For Access And Sealing
Caps are used to seal the end of a line, while plugs thread into fittings to close off branches. Both fittings are commonly used for pressure testing and temporary shutoffs. Clean-outs provide access to drain lines for maintenance and blockage removal.
You should choose caps, plugs, and clean-outs that are compatible with the system material and pressure. Confirm whether the fitting size is referenced by nominal size, OD, or ID, because this is critical for 5 8 copper fittings and other sizes.
As you plan a project, make sure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. Doing this helps avoid fitment issues and simplifies future maintenance.
Copper Compression And Push-To-Connect Fittings
Copper plumbing can be made faster and safer in many situations by using compression and push-to-connect fittings. They are ideal when using a soldering torch is impractical or when a quick repair is needed. The following section covers how each system works, where each is appropriate, and what installation tips matter for 5/8 copper tube projects.
How Compression Fittings Form A Seal
Compression fittings form a seal by using a nut and a ferrule. When the nut is tightened, the ferrule compresses around the tube and bites into the copper. This method forms a leak-resistant joint without the need for heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
These joints work well across multiple sizes, including 5 8 copper pipe fittings. When installed correctly, they allow for disassembly, making them ideal for accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Also known as quick-connect fittings, push-to-connect copper fittings allow a deburred tube to be pushed into the body until it clicks into place. They require no solder, no crimping, and no special tools. Because of this simplicity, they are popular with DIYers and professionals working in tight spaces.
These fittings are suitable for common sizes like 5/8 copper tube. Many brands provide pressure and temperature ratings. Reliable results depend on matching the fitting to the tubing type and following the manufacturer’s depth guidelines.
Why These Fittings Beat Solder In Some Jobs
Compression and push-fit copper fittings remove the need for a torch, open flame, and flux. This reduces fire risks in occupied buildings and accelerates retrofit projects. They are also time-saving options for emergency repairs and installations in tight spaces.
Mechanical fittings can be more expensive per piece and may have lower temperature ratings than soldered joints, so that should be kept in mind. Always verify the ratings before using quick-connect fittings on high-pressure or hot-water lines. When used correctly, these fittings offer a flexible, safe alternative to soldering in many plumbing applications.
Sweat And Soldered Fittings For Copper Pipe
Sweat connections form a strong bond between pipe and fitting, using flux and filler metal. By contrast, brazing uses higher heat and a filler metal that melts above 840°F. It’s commonly used in refrigeration and HVAC joints. Both approaches can create long-lasting, durable joints when performed correctly.
Overview of techniques
Sweat copper fittings rely on solder to fill the gap between the copper tube and the fitting. Because it uses a hotter flame and brazing rod, brazing copper pipe is better suited to joints that face higher temperatures and pressures. Which method to use depends on the needs of the system and any applicable local regulations.
Tools and safety gear
Important tools include a tube cutter, deburring tool, wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is used for soldering, while MAPP or acetylene is better for brazing. Protective goggles, a face mask or respirator, heat-resistant gloves, an apron, and safety shoes should always be worn.
Soldering Tips Step by Step
- Cut the copper tube 5/8 section square and deburr the edge so it fits smoothly.
- Clean the fitting and pipe with a wire brush or emery cloth until bright copper shows.
- Apply flux to the cleaned surfaces, assemble the joint, and twist it slightly to spread the flux evenly.
- Heat the fitting evenly with a surrounding flame. When brazing copper pipe, watch for a slight red tint as the temperature rises.
- Apply solder or brazing rod at the joint, then allow capillary action to draw the filler through the seam.
- Allow the joint to cool naturally, and then clean away soot and flux residue with a suitable cleaner.
When to choose soldered fittings
Choose copper solder fittings when you need a permanent, dependable joint in potable-water systems and moderate-temperature applications. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Ensure that work on 5/8 copper tubing or copper tube 5/8 sized lines follows manufacturer and code requirements for pressure compatibility.
Important Practical Considerations
A skilled technique is required to prevent cold joints and porosity. Inspect each joint for full solder coverage and test systems under pressure before insulation or concealment. Sweat copper fittings are a staple for many plumbing jobs, while brazing copper pipe is ideal for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For HVAC And Refrigeration
To move refrigerant safely, refrigeration and HVAC systems depend on precisely sized tubing and fittings. Materials and connection types are chosen by technicians based on pressure, access for service, and code rules. Understanding common sizes and fitting styles helps avoid leaks and service headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. It’s important to confirm whether the spec refers to outside diameter (OD) or nominal size before ordering parts.
5 8 copper tube must match fittings sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. When selecting copper pipe fittings refrigeration components, use manufacturer compatibility charts.
5/8 Copper Pipe And 5/8 Refrigeration Tubing Applications
For refrigerant lines, precise bends and consistent wall thickness are essential. A section of 5 8 copper refrigeration tubing works well for liquid lines and smaller suction runs. The 5/8 OD copper tubing size is commonly used for designing service valves, filter driers, and meters.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
Flare fittings create a seal by compressing a flared tube end beneath a flare nut. Technicians use flare fittings where serviceability matters, such as access panels and gauges. Flare joints are convenient in the field because they can be hand-tightened.
Bite-type fittings rely on a ferrule that bites into the wall of the tube when tightened. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. They provide quick assembly and strong vibration resistance in mobile applications.
Brazed fittings form metallurgical joints that are strong and leak-resistant. HVAC systems handling high pressures or elevated temperatures often require brazed connections. Codes and manufacturers may mandate brazing for specific refrigerants and high-pressure circuits.
Sizing Notes For 5 8 Copper OD, ID, And Compatible Fittings
Confirm the difference between 5/8 od copper tubing and a 5/8 id pipe before buying fittings. A 5/8 id pipe will have a smaller OD than tubing marked 5/8 OD. Checking both OD and ID prevents fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical application | Refrigerant liquid and suction lines, service connections | Less common for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation notes | Verify flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure Suitability | Suitable for high-pressure refrigerant circuits with the correct wall thickness | Varies by pipe class and is often lower than refrigeration-rated tubing |
Choose parts by matching the tubing OD to the fitting specification, and select copper pipe fittings refrigeration products that specifically list compatibility with 5/8 od copper tubing. For field repairs, it is wise to keep flare fittings and bite-type fittings on hand. Use brazed fittings wherever system pressure or code requirements call for permanent, high-strength joints.
How To Choose The Right Copper Fitting: Material, Sizing, And Code Requirements
To choose the right copper fitting, you need accurate measurements and a clear understanding of performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. This is a critical step for preventing leaks and ensuring the fitting matches the needs of the system.
Many HVAC and refrigeration parts are measured by outside diameter. For instance, 5 8 copper pipe od is common in refrigeration tubing. By contrast, residential plumbing often uses nominal sizing based on internal diameter. Before buying, always review the manufacturer’s notes for 5/8 in copper pipe sizing.
When matching fittings to pipe, verify if the tubing is described as 5 8 id tube or 5 8 od tubing. Different fitting types, including compression, sweat, flare, and brazed, require their own preparation steps and clearances. Select the fitting method that aligns with the application and pressure level.
Material choice and joint type are determined by system pressure and temperature. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. Flare or brazed joints are well suited to high-pressure refrigerant lines. When copper must connect to other metals, brass adapters are often ideal.
Code requirements at the local level also play a major role. Check local plumbing codes copper fittings requirements before you start any work. Some areas mandate brazed joints for HVAC refrigerant or limit mechanical fittings in concealed spaces. To satisfy code and warranty standards, look for NSF/ANSI or UPC certifications.
When selecting the best copper fittings, purchase from reputable suppliers like Ferguson or Grainger and follow manufacturer instructions. When there is any uncertainty, ask a licensed plumber or HVAC technician to confirm the correct fit and rating. This helps prevent expensive rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing | 5 8 copper pipe OD | High-pressure refrigerant lines | Fittings are usually sized by OD; use flare or brazed joints |
| Water-supply tubing | 5/8 in copper pipe sizing (nominal) | Residential water-supply systems | Confirm whether label refers to ID or nominal size |
| Compression fitting style | Often marked by tube OD or nominal ID | Quick repairs, retrofit work | Good for low-to-moderate pressure; follow torque specs |
| Sweat/soldered fittings | Usually listed by nominal size | Hot water, durable joints | Requires proper flux, heat, and cleaning for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in certain specifications | Refrigeration and fuel lines | Do not mix flare and compression fittings unless they are rated for both |
| Approved certifications | NSF/ANSI, UPC | All potable water systems | Required by many local plumbing codes copper fittings rules |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. This helps you choose copper fittings that perform reliably and comply with local codes.
Installation Tips, Common Mistakes, And Maintenance For Copper Fittings
Preparation is one of the most important steps in avoiding failures. Leaks and rework can be greatly reduced by following basic copper-fitting installation tips. The choices made during assembly are critical for the long-term performance of your system. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, deburring, and cleaning pipe ends before assembly
Begin with a proper tube cutter so you get a square cut. After cutting, it’s essential to remove burrs and copper shavings from the pipe ID and end. Clean the inner surface of fittings and the outer pipe end with a wire brush or emery cloth. This step is essential for proper solder flow and even flux coverage. If preparation is skipped, capillary action can be compromised and leaks may occur.
Proper use of flux, heat, and solder; avoiding cold joints and leaks
Apply flux evenly to both mating surfaces before assembling the joint. Then heat the fitting evenly. When soldering copper pipe, keep the flame moving to ensure uniform heat distribution. Feed solder to the heated seam and let capillary action pull it into the joint. You should avoid both overheating, which burns flux and weakens the joint, and underheating, which leads to cold joints and leaks.
Teflon tape, thread sealants for threaded copper fittings, and avoiding overtightening
For threaded copper fittings, use Teflon tape or a compatible pipe thread sealant on male threads. Wrap the tape clockwise so it remains in place during threading. Do not overtighten, because too much torque can crack fittings or strip threads. For compression fittings, use the manufacturer’s recommended torque or turn count so the ferrule is not crushed.
Routine Inspection, Leak Prevention, And When To Replace Fittings
Regularly inspect copper fittings for signs of corrosion, pinhole leaks, and mechanical damage. Leak prevention starts with correct assembly but continues with periodic checks. If leaks persist after tightening, corrosion is visible, or the system is being upgraded to modern standards, the fittings should be replaced.
Common mistakes include neglecting cutting, deburring, and cleaning, mixing OD and ID sizing conventions, overheating during soldering, and ignoring manufacturer pressure limits. Reliable systems depend on following product instructions and keeping spare parts from trusted suppliers such as Mueller Industries or Viega.
Final Thoughts
Copper pipe fittings stand out in plumbing and HVAC due to their durability, heat tolerance, and long lifespan. Whether you choose soldered joints, compression fittings, push-to-connect fittings, flare connections, or brazed assemblies depends on the details of the job. It is critical to match both the size and type of fitting correctly. Be careful with OD versus ID measurements, such as 5/8 sizing, so you do not make fitment errors.
As you select copper fittings, make sure they satisfy local codes, pressure ratings, and material standards. For dependable support and quality products, work with a trusted wholesale distributor such as Installation Parts Supply. Such suppliers can provide compatibility charts and certification details that help guide product selection for plumbing projects.
A lasting system depends on effective preparation and installation. The process should begin with cutting, deburring, and cleaning the pipe ends. Then, follow the recommended methods for fluxing, heating, or mechanical assembly. To maintain a safe, leak-free system, carry out regular inspections and replace worn fittings on time.
