An Asse 1022 Dual Check Valve provides a practical way to support potable-water backflow protection where local code allows it. It is designed to reduce reverse flow that could carry contaminants, corrosive substances, or carbonic acid into drinking-water lines. Approved devices are essential for safeguarding potable supplies and following local and national codes.
Asse 1013
Manufacturers such as Watts produce backflow preventers that meet ASSE performance requirements and certifications. These may include NSF/ANSI 61 and UL/FM approvals. Those credentials help verify material safety, pressure durability, and overall assembly performance. While some jurisdictions require higher-protection assemblies, the Asse 1022 can serve as a reliable low-hazard option where allowed.
The Asse 1022 Dual Check Valve is valued for its small footprint, simple installation, and low maintenance costs. This guide contrasts Asse 1022 devices alongside higher-protection standards, including Asse 1013. It also covers how to select, install, and maintain units to stay compliant with plumbing codes and industry recommendations.
Backflow Basics And The Role Of Dual Check Valves
Backflow is a significant threat to water systems because it allows treated water to move backward. That backward flow may carry contaminants into potable lines and reduce the safety of drinking water. Local water authorities and adopted codes require measures that prevent this contamination.
Backflow usually happens because of one of two hydraulic conditions. Backsiphonage occurs when supply pressure drops and creates a vacuum that pulls water backward. Backpressure occurs when pressure on the downstream side becomes greater than supply pressure and pushes water backward. Understanding backsiphonage versus backpressure is critical because each may require a specific prevention method.
In homes, common cross-connections include irrigation systems, garden hoses, boilers, and chemical injection points. Commercial settings add booster pumps, closed-loop HVAC systems, and process equipment. Without the right device, these connections may become pathways for pollutants or unwanted substances.
Dual check valves such as the Asse 1022 are intended for lower-risk backflow protection. They help prevent contaminants that may affect taste or odor but are not considered a direct health risk. An Asse 1022 Backflow Preventer can be a compact solution for approved low-hazard applications described by plumbing codes and water authorities.
Correct selection and installation depend on the applicable codes, listings, and standards. ASSE performance requirements and ANSI-accredited development support product acceptance. Installers should follow local plumbing-code language and relevant guidance, such as the 2018 UPC and AWWA M-14, when applying Asse 1022 devices.
Typical approved uses include residential irrigation, HVAC makeup lines, and some commercial low-hazard cross-connections. When the hazard level is higher, authorities typically require a more protective assembly.
| Problem | Cause | Recommended Protection |
|---|---|---|
| Backsiphonage | Main pressure loss from firefighting, broken lines, or supply interruption | Asse 1022 Backflow Preventer or air gap where required |
| Reverse flow from downstream pressure | Downstream pressure from pumps, tanks, or thermal expansion | Dual check protection for low risk, or reduced-pressure protection for high risk |
| Drinking-water contamination risk | Chemical injection, treated boiler water, irrigation additives, or industrial fluids | Assess hazard level; apply Asse 1022 or higher-rated device |
What Is Backflow And How It Occurs
Backflow is the backward movement of water from any source into the public supply. It may be caused by negative supply pressure, backsiphonage, or excess downstream pressure. Both conditions can introduce contaminants and threaten potable water quality.
Why Low-Hazard Systems Use Dual Check Valves
A dual check valve uses two separate check mechanisms inside a single valve body. This redundancy protects low-hazard cross-connections against reverse flow. Asse 1022 devices are tested for low-hazard or nuisance-level risks and are commonly used where the authority allows this type of protection.
Asse 1022 Dual Check Valve

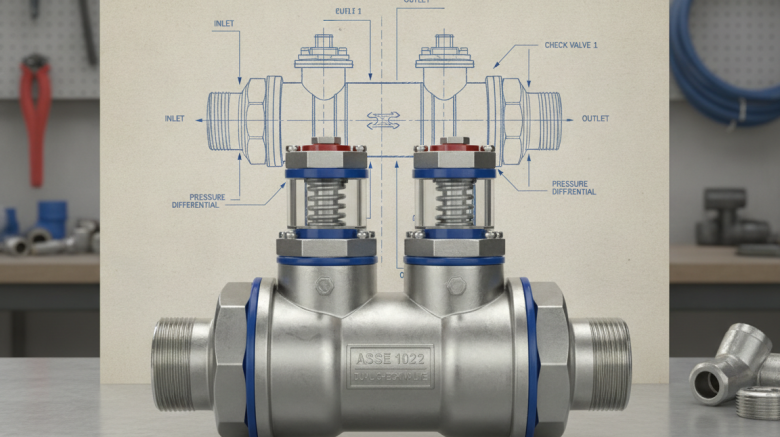

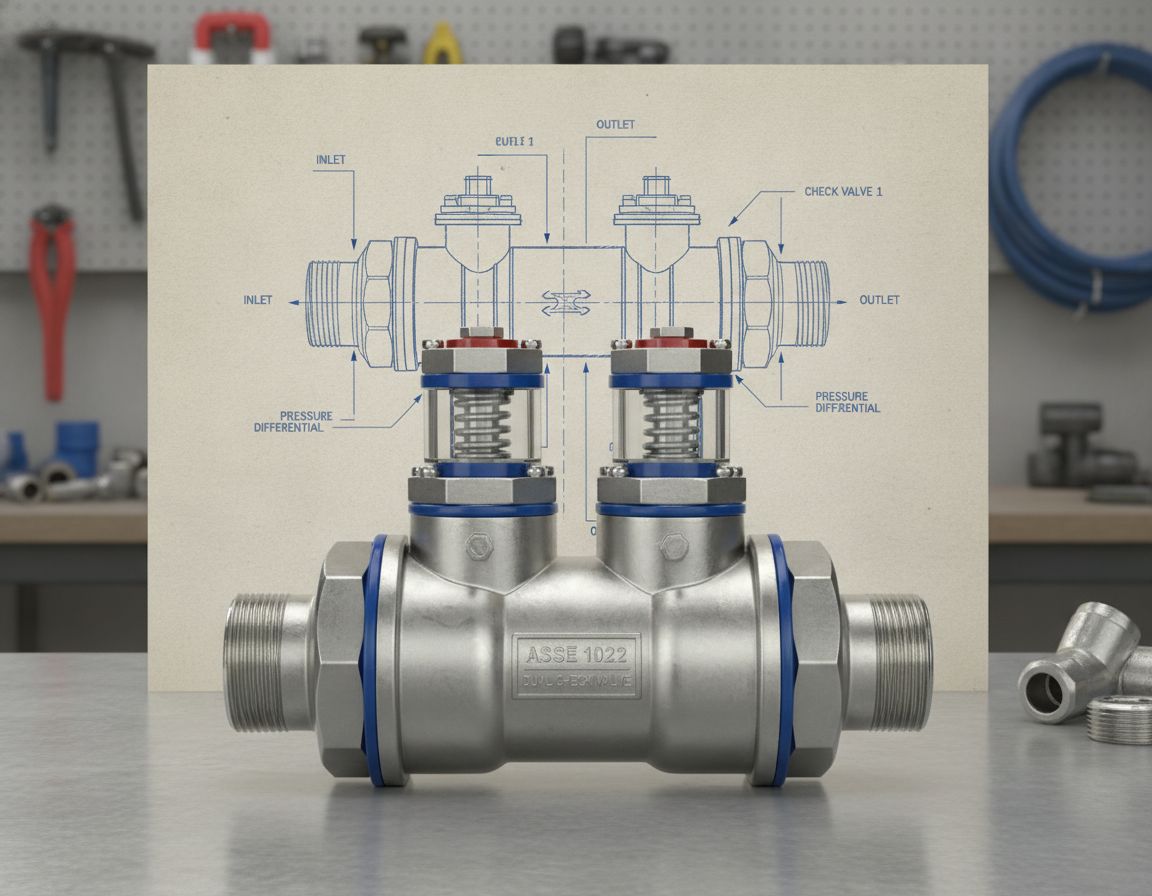

The Asse 1022 Dual Check Valve is a compact backflow device designed for low-hazard potable water protection. It uses two independent spring-loaded checks arranged in series. This arrangement prevents reverse flow and provides redundant sealing. It maintains serviceability and reduces contamination risk during pressure shifts or brief backpressure events.
Key Features And How The Valve Works
Spring-loaded check mechanisms help the valve close positively when flow or pressure changes. Many models include serviceable internal parts and replaceable seats. This design reduces maintenance time and lifecycle costs.
Manufacturers produce Asse 1022 units in materials such as bronze, brass, corrosion-resistant alloys, and engineered plastics. Available sizes are designed to match common pipe diameters, pressure ratings, and potable-water system requirements.
Built-in test ports and compact bodies support quick installation and routine inspection. An Asse 1022 Backflow Preventer can fit into tight locations where larger backflow assemblies may not be practical. It meets flow requirements for typical low-hazard applications.
Standards And Certifications Supporting ASSE 1022 Devices
ASSE standards define baseline performance tests, functional requirements, and operating thresholds. Those tests are used to verify dependable operation under defined conditions. Many listed products exceed minimum requirements, which may reduce failure risk and support longer maintenance intervals.
NSF/ANSI 61 certification helps confirm that wetted materials are suitable for drinking water and do not leach harmful contaminants. UL/FM approvals can support confidence in durability, pressure resistance, and stress-tested performance. This gives specifying engineers additional assurance.
When combined with ANSI-accredited development, these approvals improve the Asse 1022 Dual Check Valve’s acceptance in plumbing codes and project specifications. For teams that need verified material safety and tested performance, ASSE 1022 compliance, NSF/ANSI 61 certification, and UL/FM marks can form a strong compliance package.
ASSE 1022 Compared With ASSE 1013, ASSE 1012, And ASSE 1024
This outline compares common backflow protection options to help match device features with risk and code needs. It explains practical differences among RPZ assemblies, double-check devices, and other dual-check products used in U.S. plumbing systems.
Device selection should start with a clear hazard-level assessment. ASSE 1022 double-check assemblies suit low-hazard services such as irrigation and some HVAC makeup lines. By contrast, Asse 1013 RPZ units are designed for high-hazard cross-connections where contaminants could create a health risk. Asse 1024 applies to reduced-pressure principle devices used where severe contamination risk may exist. Use Asse 1012 standards when specifying certain dual-check products or service-line applications.
How ASSE 1022 Differs From ASSE 1013 And ASSE 1024
ASSE 1022 double-check assemblies use two check valves and shutoff valves to prevent backflow in low-hazard situations. ASSE 1013 RPZ assemblies add a relief valve that vents to atmosphere under certain pressure conditions, creating a higher protection margin. Asse 1024 reduced-pressure principle devices use the same relief concept but apply to a broader set of severe contamination risks.
Testing requirements and procedure complexity vary by device type. Asse 1013 RPZ units commonly require annual testing, post-event checks, and relief-valve verification. Double-check assemblies under ASSE 1022 require periodic testing to confirm both checks operate, with simpler procedures than RPZ testing.
Where ASSE 1012 Or Similar Standards May Be Used
Asse 1012 covers requirements for selected dual-check configurations used in low- or moderate-hazard applications. Choose this standard when local code or the water authority allows a dual-check format but requires a recognized standard beyond ASSE 1022.
Code requirements differ from one jurisdiction to another. Many municipalities that follow the 2018 UPC require ASSE 1013 RPZ assemblies for high-hazard cross-connections. Utilities may allow ASSE 1022 for low-hazard applications or specify Asse 1012-certified dual-check devices for certain service-line uses. Always confirm requirements with the local water authority before installation.
| Feature | ASSE 1022 Device | Asse 1013 (RPZ) | Asse 1024 Reduced Pressure Principle | Asse 1012 Dual-Check Standard |
|---|---|---|---|---|
| Main application | Low-hazard services like irrigation and some HVAC | High-hazard cross-connections and health-risk protection | Serious contamination threats requiring reduced-pressure protection | Dual-check configurations for specific service applications |
| Hazard protection | Low hazard | High | High-protection reduced-pressure level | Application-dependent low-to-moderate protection |
| Atmospheric relief | Not included | Includes atmospheric relief valve | Yes, required | No, unless specified |
| Inspection requirement | Routine check-mechanism verification | Annual and post-event testing with relief verification | Annual reduced-pressure assembly testing | Periodic testing per authority rules |
| Common applications | Low-hazard cross-connections where allowed | High-hazard systems involving toxic or harmful fluids | Reduced-pressure protection for severe hazard sources | Specific service uses approved by local code or utility |
| Common code treatment | Often allowed for low-hazard applications | Mandated for high-hazard by many water authorities | Required for serious contamination threats | Selected where code or utility language specifically calls for it |
For an ASSE 1022 comparison with RPZ units, consider both safety margin and testing needs. RPZ versus double-check decisions depend on hazard assessment, local code, and water authority rules. If requirements are uncertain, follow the higher protection level required by the authority having jurisdiction.
Installation, Maintenance, And Code Compliance
Proper Asse 1022 installation begins with thorough planning. Place dual check valves in an easily accessible area and follow the manufacturer’s orientation guidelines. Maintain enough space for service, testing ports, and unions. This lets certified testers access fittings without unnecessary disassembly.
Follow good piping practices to avoid introducing new hazards. Avoid installing devices where downstream cross-connections could undermine the protection. Install shutoffs, unions, and drain provisions according to manufacturer instructions and local codes. Make sure unions and test cocks remain accessible for routine service and backflow testing.
Maintenance schedules are set by local regulations and water authority directives. Many jurisdictions require annual inspection or testing by certified backflow professionals. Detailed records of service and test results are important for proving compliance during audits and permit reviews.
Certified testers provide documented evidence that satisfies most regulatory requirements. AWWA M-14 can be used as a reference for inspection, maintenance, and backflow-prevention practices. Following these guidelines can reduce downtime and detect wear before leaks or failures occur.
Selecting devices with recognized listings can simplify inspection and approval. Products with ASSE approvals and NSF/ANSI 61 installation ratings are often accepted more readily by plumbing inspectors. UL/FM compliance may also be important for commercial, industrial, or fire-protection connections that require third-party recognition.
Before installation, learn the applicable plumbing code edition and water authority rules in your area. Some locations may require an RPZ instead of a dual check. Confirm the permit process and make sure the chosen Asse 1022 installation meets local standards to avoid delays and rework.
Create a consistent record-keeping process for the device. Store manufacturer cut sheets, test certificates, and repair invoices with a map of the device location. This simplifies future inspections and supports transparent compliance during regulatory reviews.
Where To Buy And How To Select The Right Product
Choosing the right device means matching size, pressure rating, and materials to the plumbing system. Make sure the Asse 1022 Dual Check Valve fits the pipe diameter and peak flow. Also compare pressure ratings with maximum working pressure and expected surge conditions.
Material compatibility is a key consideration in potable-water systems. Use brass, bronze, or NSF/ANSI 61-certified plastics to reduce corrosion risk and avoid harmful leaching. Review the manufacturer’s chemical-resistance data for local water chemistry.
Certification checks simplify approval and inspection. Make sure the product shows ASSE 1022 compliance and NSF/ANSI 61 certification where required. If local codes demand UL or FM approval, confirm those marks before purchase.
Consider supplier reputation when buying ASSE 1022 devices. Authorized dealers provide genuine parts, documentation, and warranty support. Installation Parts Supply is a reputable distributor that stocks certified units and can help with model selection.
Warranty coverage and pricing rules can affect the final purchase cost. Review manufacturer warranty limits and any MAP rules that hide prices online. Some stores require cart checkout to reveal final pricing while preserving full warranty through authorized sales channels.
Choose Materials
- Match pipe size and flow to the Asse 1022 Dual Check Valve model.
- Use NSF/ANSI 61-certified components for potable-water systems whenever required or available.
- Check the Asse 1022 Backflow Preventer pressure rating and surge tolerance before installation.
Reliable Supplier Tips
- Purchase from certified or authorized dealers so documentation is available for inspections.
- Choose vendors that offer sizing support and warranty handling.
- Installation Parts Supply commonly offers certified stock and practical model-selection guidance.
| Selection Point | What to Check | Why It Matters |
|---|---|---|
| Pipe size and flow | Pipe diameter, GPM requirements, model sizing chart | Helps avoid pressure drop and supports correct function |
| Material compatibility | Brass, bronze, or NSF/ANSI 61-certified plastics | Protects potable water quality and resists corrosion |
| Pressure and surge capacity | Maximum working pressure and surge capacity | Reduces risk of damage during pressure changes |
| Certifications | Required approvals for code, utility, or project specifications | Supports code compliance and regulatory acceptance |
| Distributor or dealer | Supplier reputation, product authenticity, and technical help | Reduces risk of counterfeit parts and improves after-sale support |
| Warranty & Pricing | Warranty terms, authorized-sale rules, and final cart price | Protects investment and clarifies purchase cost |
Conclusion
ASSE 1022 double-check valves can be compact solutions for low-risk backflow prevention when approved by the local authority. The Asse 1022 Dual Check Valve uses two spring-loaded checks and materials that meet NSF/ANSI 61 and ASSE standards. This helps reduce contamination risks in irrigation and some HVAC makeup lines.
Choosing the right device depends on hazard level and code compliance. Use an Asse 1022 Backflow Preventer for low-hazard scenarios. For high-hazard applications, authorities may require ASSE 1013, ASSE 1024, or another reduced-pressure assembly. Correct selection can simplify permitting, reduce rework, and improve potable-water protection.
For backflow-prevention compliance, follow manufacturer instructions and local plumbing-code requirements. Where applicable, this may include the 2018 UPC, local amendments, and water authority rules. Purchase certified products from trusted suppliers. Verify ASSE, NSF/ANSI 61, and UL or FM listings for approvals and reliability.
Correct device selection, precise installation, and regular maintenance are essential. These steps, supported by certified devices and qualified testers, help safeguard potable water. They also make regulatory acceptance, inspection, and documentation easier. Following these practices helps an Asse 1022 Dual Check Valve or other approved backflow solution perform reliably over time.
